Find Your Ideal Debinding & Sintering Furnace
View more
Send Email
General Specifications
| Item | Specification |
|---|---|
| Maximum Temperature | 650°C – 1700°C |
| Working Temperature | Up to 1600°C |
| Chamber Size | Customizable |
| Chamber Material | Stainless Steel / Ceramic Fiber |
| Heating Method | 3-Side, 4-Side or 5-Side Heating |
| Heating Elements | Resistance Wire / MoSi₂ |
| Temperature Uniformity | ±5°C |
| Temperature Accuracy | ±1°C |
| Control System | PID Controller / PLC + Touch Screen |
| Programmable Recipes | Up to 50 Segments |
| Atmosphere Options | Air, N₂, Ar, He, H₂ |
| Vacuum Function | Optional |
| Cooling Method | Natural Cooling / Forced Air Cooling |
| Data Logging | Optional |
| Power Supply | 220V / 380V |
| Safety Protection | Over-temperature, Over-pressure, Door Interlock |
| Custom Design | Available |
Processing Capability
- Thermal Debinding
- Hot Air Debinding

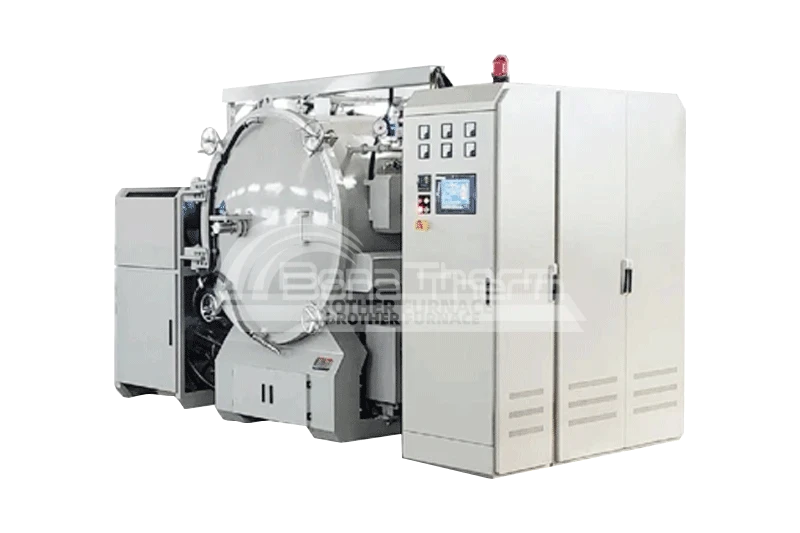

- Vacuum Debinding
- Pre-Sintering
- Controlled Cooling
- High Temperature Sintering
- Atmosphere Debinding
Typical Applications
MIM (Metal Injection Molding) Parts
Cemented Carbide
Ceramic Products
Automotive Parts
Powder Metallurgy Parts
Electronic Components
3D Printed Parts
Frequently
Asked Questions
How do you prevent defects during debinding?
Through precise temperature ramp control and optimized atmosphere flow, ensuring gradual binder removal and avoiding cracking, blistering, or deformation.
What atmosphere options are available?
Air, N₂, Ar, H₂, or mixed atmospheres can be configured based on material and process requirements.
Should I choose an integrated or separate furnace?
Integrated (debinding + sintering): higher efficiency, fewer handling steps Separate systems: more flexible for complex or sensitive processes
Can the furnace support mass production?
Yes. Designed for stable, repeatable operation, suitable for continuous or batch production.
From Design to Delivery —
One-Stop Furnace Solutions
- Submit your requirements; customize furnace size, temperature, and atmosphere based on materials
- Provide a practical, executable technical solution
- Production after solution confirmation
- For standard models in stock, immediate shipment is available
- Strict testing to ensure temperature, vacuum, and control performance meet specifications
- On-site installation or installation guidance
- Operator training and fast after-sales support
- Standard warranty and long-term spare parts supply
You are welcome to consult at any time
contact us
