Ceramic Debinding Furnace
- Max Temp:650 °C
- Temp Uniformity:± 5 °C
- Power Range:15 – 51 kW · 380 V
- Certification:CE / ISO 9001 certified
Get Quote
Send Email-
Customized Vacuum Solutions
-
High Thermal Efficiency
-
Ultra-Clean Vacuum Environment
-
Stable & Repeatable Results
-
Industry-Grade Safety Design
Equipment Overview

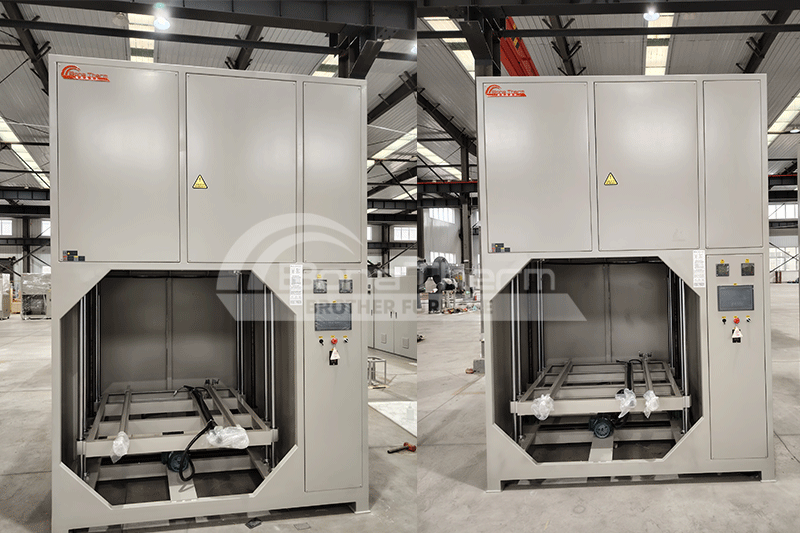

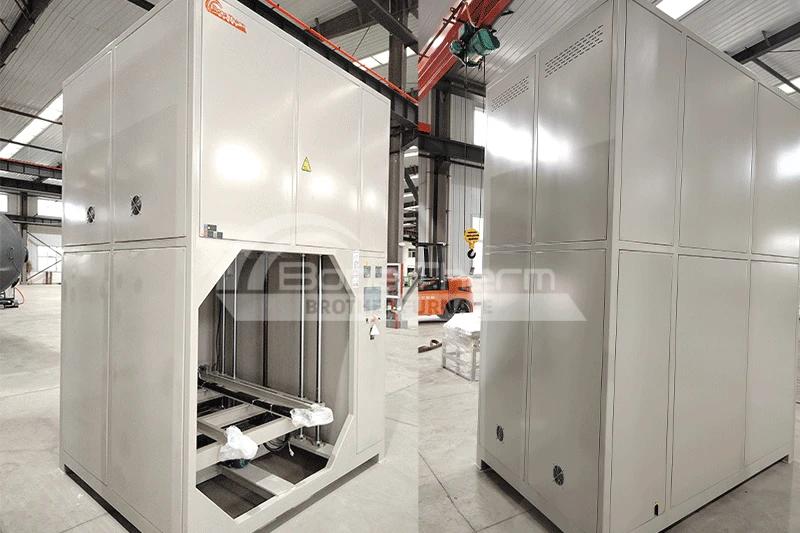

The Brother ceramic debinding furnace is a high-capacity air atmosphere furnace for production-scale binder burnout of technical ceramics and MIM components. Three-sided heating with forced air circulation maintains ±5°C temperature uniformity across the full load, while the high-flow exhaust system removes binder gases as fast as they are generated. The bottom-loading trolley configuration makes handling heavy kiln furniture practical and reduces green part damage risk during loading.
Key Features
Large chamber capacity; stainless steel (310S) construction
3-sided heating with forced air circulation; temperature uniformity ±5°C
High-capacity exhaust system for rapid ceramic debinding
Preheated fresh air inlet for active degreasing assistance

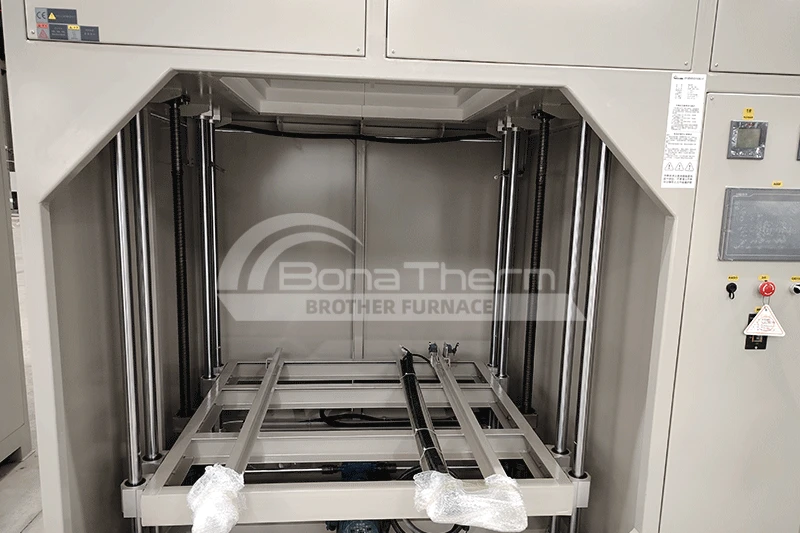

Bottom-loading trolley for convenient large-batch loading
Programmable temperature and airflow control throughout debinding cycle
Optional integrated cracking system for zero-pollution exhaust treatment
Applications
Technical ceramic binder burnout, MIM debinding, 3D-printed ceramic pre-processing, alumina and zirconia production debinding.
