Heat Treatment Muffle Furnace
- Max Temp:1700 °C
- Working Zone:100×100×100 mm ~ 1000×1000×1000 mm (1 ~ 1000 L)
- Certification:CE / ISO 9001 certified
- Application:Sintering, melting and analysis of metals, non-metals and compound materials
Get Quote
Send Email-
Customized Vacuum Solutions
-
High Thermal Efficiency
-
Ultra-Clean Vacuum Environment
-
Stable & Repeatable Results
-
Industry-Grade Safety Design
Product Description

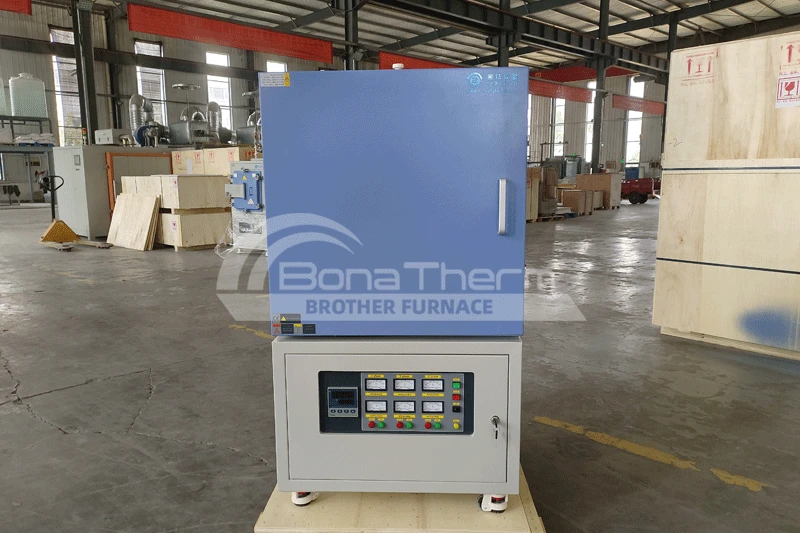

The Brother Furnace Heat Treatment Muffle Furnace is designed with high-quality heating elements and a stable temperature control system, enabling uniform heating and precise temperature control. It meets the requirements of various heat treatment processes in terms of temperature stability and repeatability.
It is widely used in industrial applications for processes such as annealing, tempering, sintering, and other heat treatment operations.
Typical Heat Treatment Processes
The heat treatment muffle furnace can be used for a variety of processes, including:
· Annealing
Heating followed by slow cooling to soften metals, improve ductility, and relieve internal stresses.
· Tempering
Post-quenching heat treatment to reduce brittleness and enhance toughness.
· Normalizing
Heating followed by air cooling to refine grain structure and improve mechanical properties.
· Stress Relieving
Eliminates residual stresses generated during welding, machining, or forming.
· Sintering
In powder metallurgy, heating is used to bond metal particles into a dense material.
· Thermal Property Testing
Suitable for laboratory research and material thermal performance testing.
Product Highlights
· Excellent Temperature Uniformity

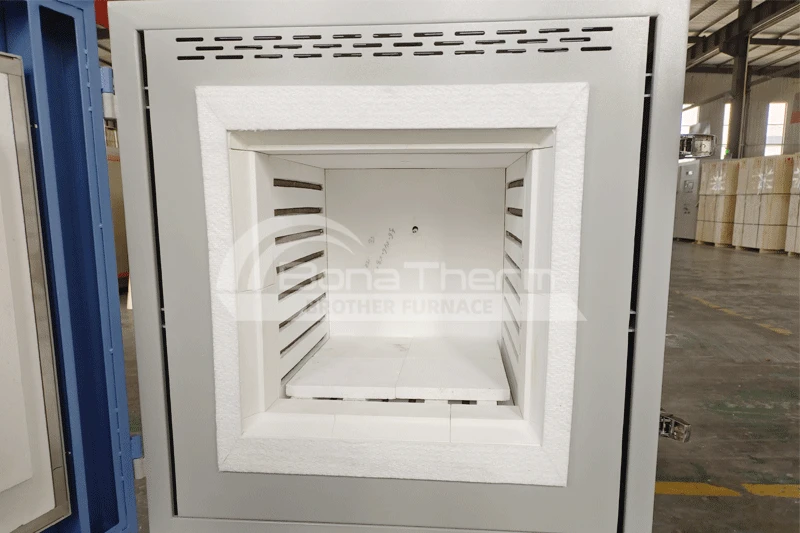

Optimized chamber design ensures even heat distribution, providing stable and reliable heat treatment results.
· Multiple Temperature Options
Maximum temperatures available: 1200°C, 1400°C, 1700°C, and 1800°C, suitable for different materials and processes.
· Precise Temperature Control
Equipped with a PID programmable controller, supporting multi-segment heating programs for complex processes.
· High-Quality Heating Elements
Depending on temperature requirements, resistance wire, silicon carbide (SiC), or molybdenum disilicide (MoSi₂) heating elements can be used, ensuring stable performance and long service life.
· Customizable Design
Custom solutions are available based on specific requirements, including chamber size, temperature range, control system, and power configuration.
Technical Specifications（Customization available）
Item | Specification |
Max Temperature | 1200℃ / 1400℃ / 1700℃ / 1800℃ |
Working Temperature | 1100℃ / 1300℃ / 1600℃ / 1700℃ |
Chamber Volume | 1L – 1000L |
Chamber Size | 100×100×100 mm – 1000×1000×1000 mm (customizable) |
Power Range | 0.8 kW – 120 kW |
Power Supply | Single-phase / Three-phase |
Temperature Control | PID automatic control with 50 programmable segments |
Cooling Method | Forced air cooling (outer surface ≤60℃) |
