1200°C Muffle Furnace
- Max Temp:1200℃
- Working Zone:100×100×100 mm ~ 1000×1000×1000 mm (1 ~ 1000 L)
- Certification:CE / ISO 9001 certified
- Application:Sintering, melting and analysis of metals, non-metals and compound materials
Get Quote
Send Email-
Customized Vacuum Solutions
-
High Thermal Efficiency
-
Ultra-Clean Vacuum Environment
-
Stable & Repeatable Results
-
Industry-Grade Safety Design
Product Description

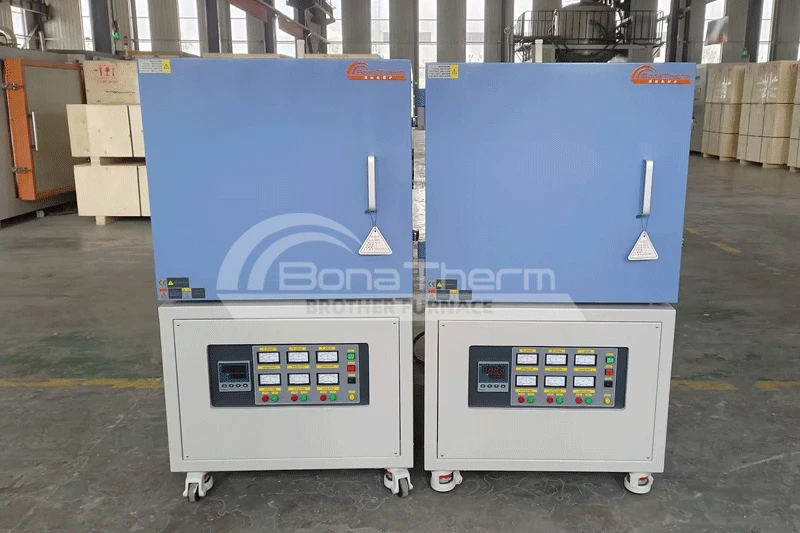

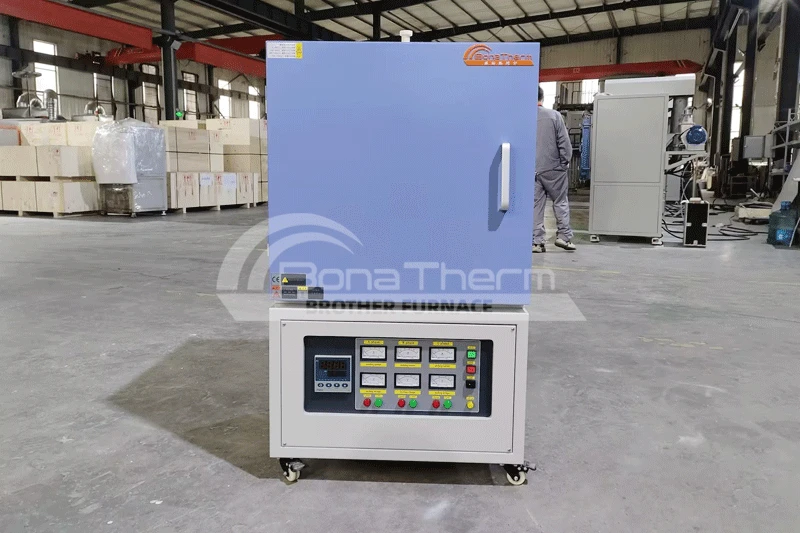

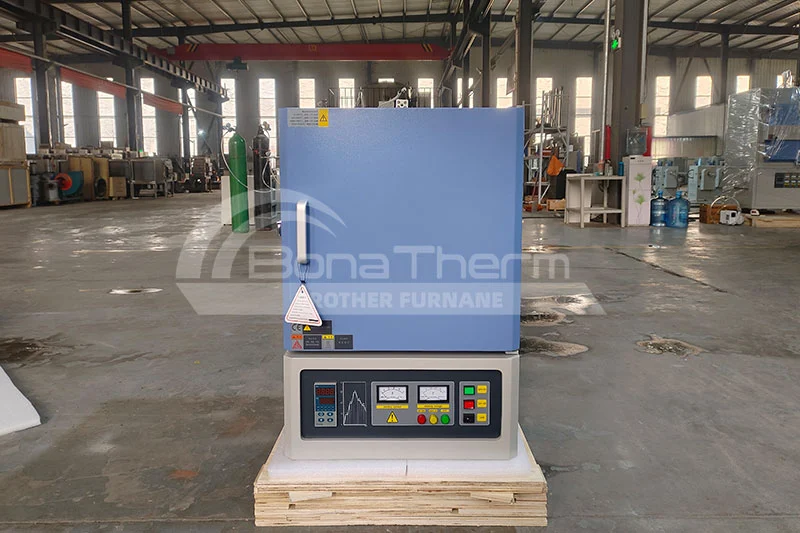

The BR-12N series 1200°C muffle furnace is the most widely used entry-level laboratory box furnace for general-purpose high-temperature processing. With a maximum operating temperature of 1200°C and a recommended working temperature of 1100°C, it covers the majority of routine laboratory applications, including ash content determination, organic burnout, ceramic bisque firing, glass annealing, and metal oxide synthesis.
Constructed with polycrystalline mullite fiber lining and high-quality resistance wire heating elements, the BR-12N delivers stable, uniform temperature distribution at an economical operating cost. Available in chamber volumes from 1 L to 1000 L, this muffle furnace scales from benchtop analytical use to small industrial batch processing.
Product Highlights
Resistance Wire Heating Elements High-quality resistance wire provides smooth, even heat distribution at 1200°C operating temperatures, making this muffle furnace ideal for applications that do not require extreme temperatures but demand consistent results.
Mullite Fiber Insulation 120–250 mm polycrystalline mullite fiber lining minimizes heat loss and reduces warm-up time, improving both energy efficiency and temperature uniformity within the chamber.
50-Segment Programmable Controller with K-Type Thermocouple A K-type thermocouple paired with a 50-segment PID programmable controller allows precise ramp, soak, and cool cycles — essential for reproducible laboratory sintering and calcination procedures.
Wide Volume Range: 1 L to 1000 L The BR-12N series spans 14 standard chamber sizes. Single-phase models (1–27 L) suit bench-top laboratory use; three-phase models (36–1000 L) support larger batch and industrial-scale processing.
Safe, Cool-Running Exterior Double-layer shell with fan cooling keeps the outer surface below 60°C, making this 1200°C box furnace safe to operate in confined lab environments without additional guarding.
Applications
Ash content determination · Organic matter burnout · Ceramic sintering · Glass annealing · Metal oxide synthesis · Soil analysis · Cement testing · General laboratory calcination
Technical Specifications（Customization available）
Model | Max Temp(℃) | Work Temp(℃) | Chamber Size(W*H*D)mm | Volume(L) | Power(kW) | Phase | Thermocouple |
BR-12N-1 | 1200 | 1100 | 100*100*100 | 1 | 0.8 | 1 | K |
BR-12N-2 | 1200 | 1100 | 120*120*130 | 2 | 1.2 | 1 | K |
BR-12N-3 | 1200 | 1100 | 150*150*150 | 3 | 2.5 | 1 | K |
BR-12N-5 | 1200 | 1100 | 150*150*200 | 5 | 3 | 1 | K |
BR-12N-8 | 1200 | 1100 | 200*200*200 | 8 | 5 | 1 | K |
BR-12N-12 | 1200 | 1100 | 200*200*300 | 12 | 6 | 1 | K |
BR-12N-27 | 1200 | 1100 | 300*300*300 | 27 | 8 | 1 | K |
BR-12N-36 | 1200 | 1100 | 300*300*400 | 36 | 10 | 3 | K |
BR-12N-64 | 1200 | 1100 | 400*400*400 | 64 | 16 | 3 | K |
BR-12N-125 | 1200 | 1100 | 500*500*500 | 125 | 25 | 3 | K |
BR-12N-216 | 1200 | 1100 | 600*600*600 | 216 | 36 | 3 | K |
BR-12N-512 | 1200 | 1100 | 800*800*800 | 512 | 64 | 3 | K |
BR-12N-729 | 1200 | 1100 | 900*900*900 | 729 | 80 | 3 | K |
BR-12N-1000 | 1200 | 1100 | 1000*1000*1000 | 1000 | 100 | 3 | K |
