Slide-Rapid Cooling Tube Furnace
- Max Temp:1600 °C
- Atmosphere Control:Vacuum, N₂, Ar, H₂, mixed gas and other inert / reducing atmospheres
- Thermocouple:K-type (1200) / S-type (1400) / B-type (1600)
- Heating rate:≤ 20 °C / min
- Certification:CE / ISO 9001 certified
Get Quote
Send Email-
Customized Vacuum Solutions
-
High Thermal Efficiency
-
Ultra-Clean Vacuum Environment
-
Stable & Repeatable Results
-
Industry-Grade Safety Design
Product Description

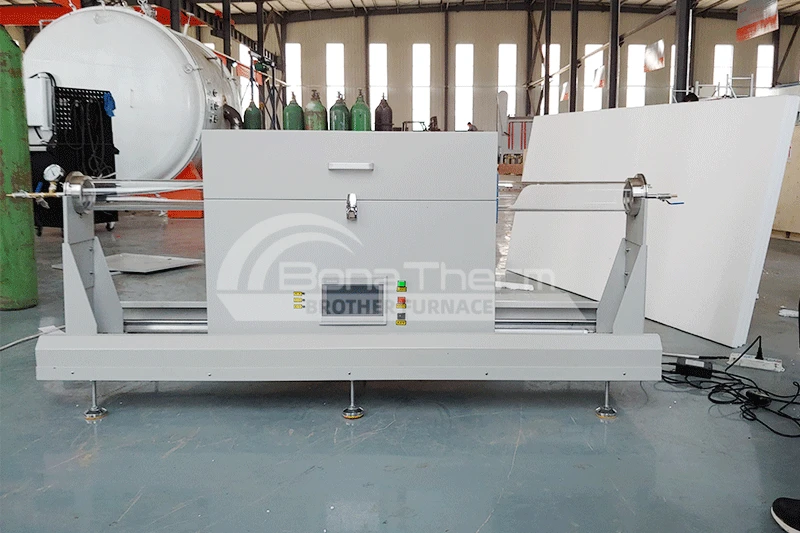

The Brother Furnace's slide-rapid cooling tube furnace combines precise temperature control with a motorized sliding mechanism that moves the furnace body left and right along the tube, enabling rapid heating and sudden cooling without manual intervention. This makes it an ideal solution for experiments requiring abrupt thermal transitions, such as graphene growth, CVD processing, and vacuum annealing.

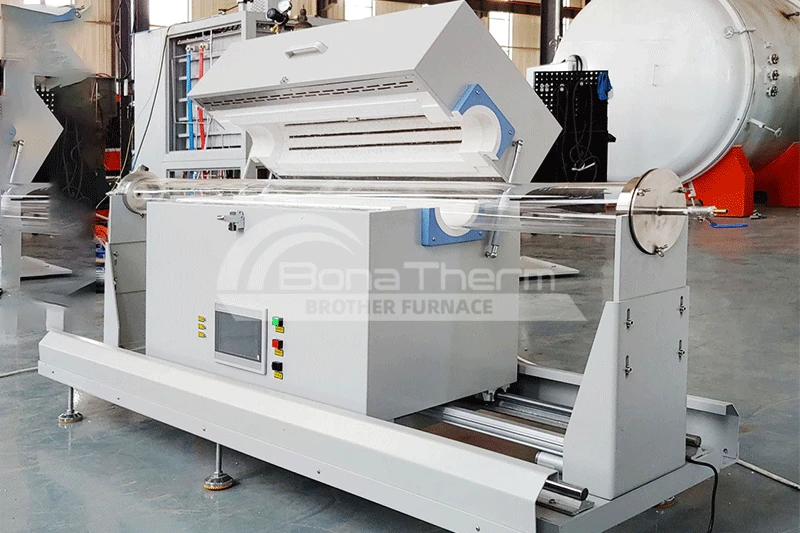

High-purity quartz tubes and a high-quality alumina polycrystalline fiber insulation chamber — formed by vacuum adsorption using Japanese technology — ensure both excellent thermal uniformity and outstanding insulation performance.
Product Highlights
Maximum temperature 1200°C (HRE Fe-Cr-Al-Mo wire)
50-segment programmable PID automatic control
Temperature control accuracy ±1°C
Heating rate ≤ 20°C/min

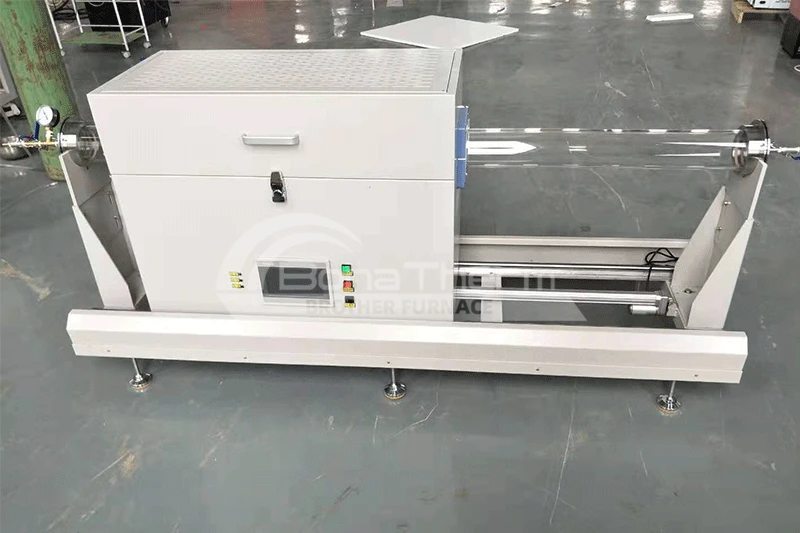

Standard 1200 mm manual slide rail; furnace body slides freely for rapid cooling
Double-layer air-cooled shell; surface temperature below 50°C
304 stainless steel KF quick-release sealing flange
Maximum vacuum –0.1 MPa; molecular pump option achieving 7×10⁻³ Pa
Over-temperature protection and leakage safety with automatic power-off
Applications
Graphene growth, CVD experiments, high-temperature atmosphere sintering, atmosphere reduction, vacuum annealing, and sudden heating/cooling material research.
Standard Parts
Tube plug ×2, quartz tube ×1, vacuum pump ×1, vacuum sealing flange ×1 set, vacuum pressure gauge ×1
Optional Upgrades
Electric slide rail with adjustable speed; built-in thermocouple for real-time constant-temperature zone monitoring; advanced vacuum system; multi-channel gas mixing system with mass flow meters; HD touch screen
Technical Specifications(Customization available)
Model | Tube Outer Dia*Heating Zone (mm) | Power(kW) | Max Temp(℃) | Work Temp(℃) | Thermocouple | Tube Material | Heating Element |
BR-12SNT-40/300 | 40*300 | 3 | 1200 | 1100 | K Type | Quartz Tube | Resistance Wire |
BR-12SNT-60/300 | 60*300 | 3 | |||||
BR-12SNT-80/300 | 80*300 | 5 | |||||
BR-12SNT-100/300 | 100*300 | 5 | |||||
BR-12SNT-120/300 | 120*300 | 6 |
