Horizontal Tube Furnace

Product Description

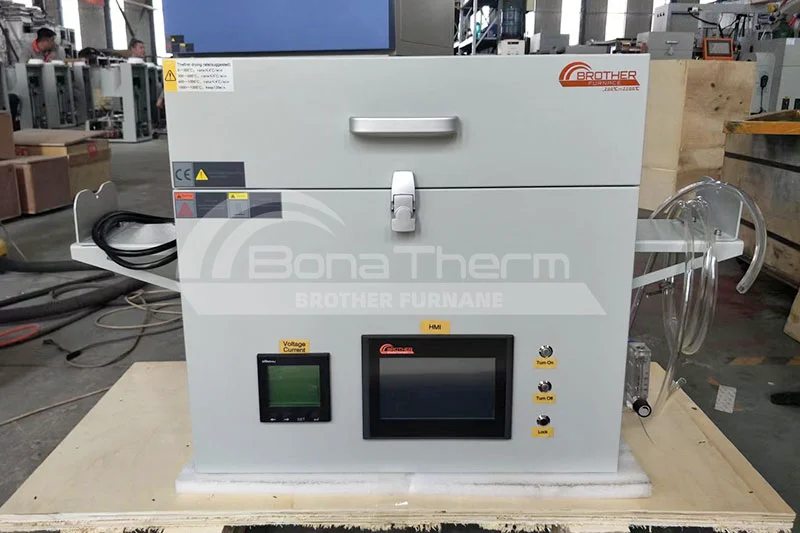

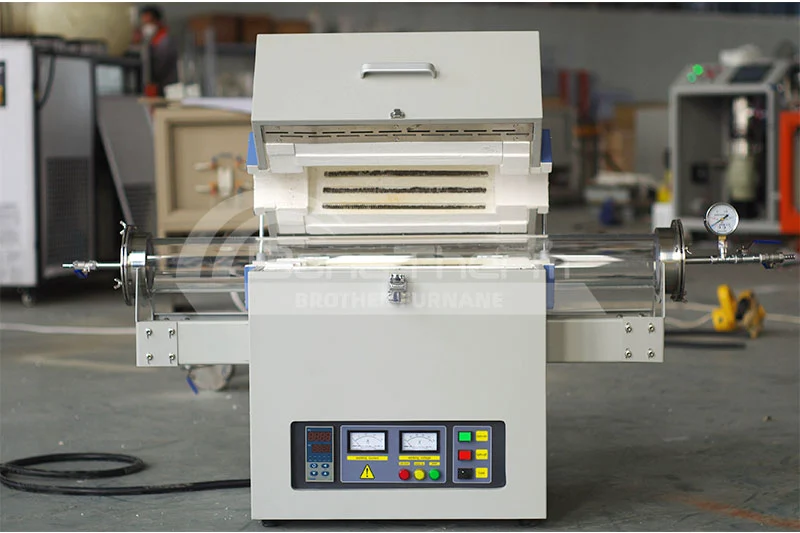

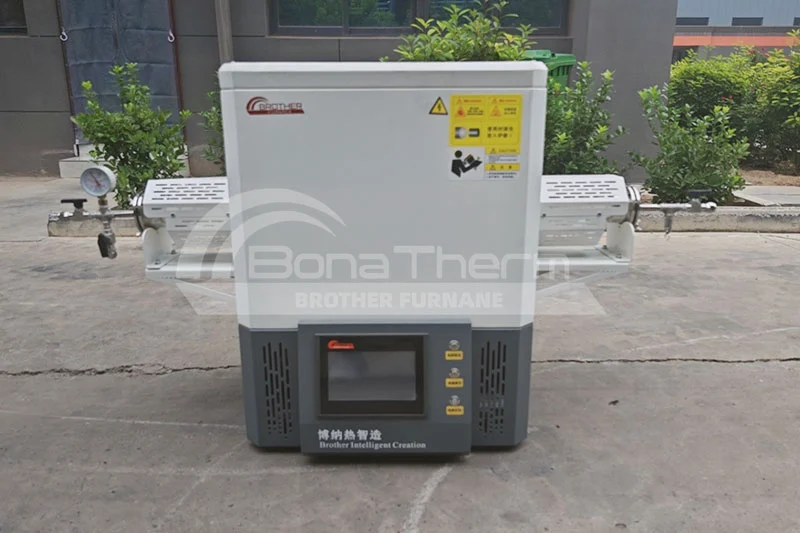

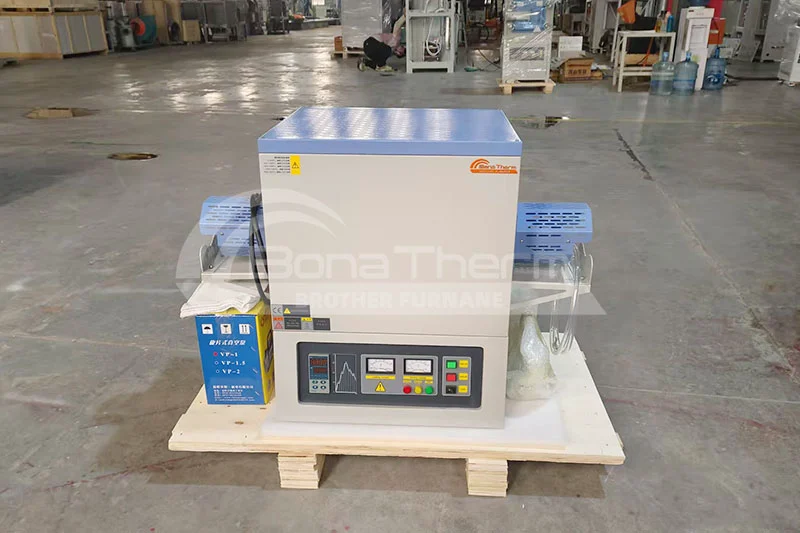

The Brother horizontal tube furnace is a precision laboratory heating solution designed for high-temperature processing under controlled atmosphere or vacuum conditions. Using high-purity quartz or alumina furnace tubes, it covers a working temperature range from 300°C to 1600°C, making it suitable for a wide range of research and production applications in universities, scientific institutes, and industrial facilities.

Product Highlights

• Maximum temperature up to 1600°C (MoSi₂ heating element)

• Intelligent 30-segment programmable automatic temperature control

• Temperature control accuracy ±1°C

• Double-layer air-cooled shell structure; surface temperature below 50°C

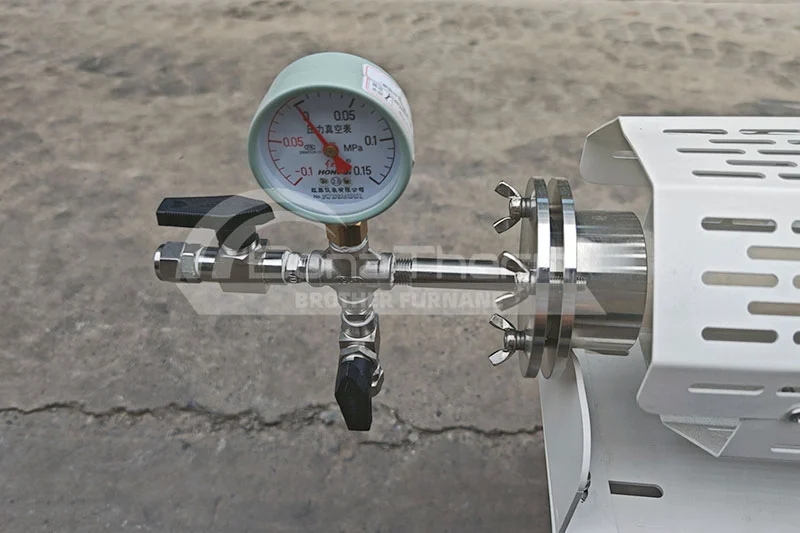

• 304 stainless steel double sealing flange for reliable atmosphere isolation

• Adjustable flange support at both ends to extend furnace tube service life

• Over-temperature protection with automatic power-off

• Leakage safety protection with automatic power-off

• Maximum vacuum degree –0.1 MPa; optional molecular pump achieving 7×10⁻⁴ Pa

• Heating rate ≤ 20°C/min

Applications

High-temperature sintering, metal material processing, quality testing, atmosphere reduction, vacuum annealing, and small-batch production.

Standard Parts

Tube plug ×2, furnace tube ×1, vacuum pump ×1 set, vacuum sealing flange ×1 set, vacuum pressure gauge ×1

Optional Upgrades

Rotary vane/diffusion / molecular pump vacuum system; float or mass flowmeter atmosphere system; quick-release or tee flange; 7-inch HD touch screen

Technical Specifications（Customization available）
