Rotary Tube Furnace

Product Description

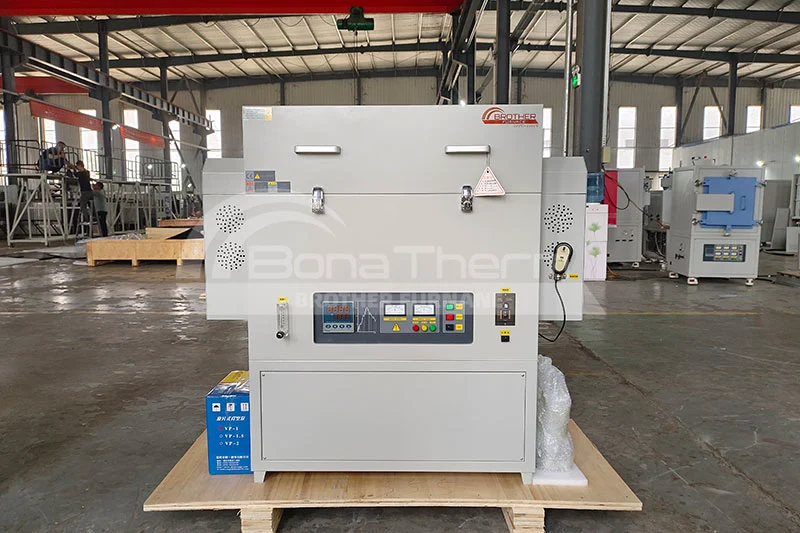

The Brother rotary tube furnace is purpose-designed for calcining inorganic compounds with exceptional heating uniformity. Its rotating quartz tube with three internal lifting plates continuously turns the sample material during heating, ensuring complete and even thermal exposure — particularly critical for preparing Li-ion battery cathode materials such as LiFePO₃ and LiMnNiO₃ with conductive coatings.

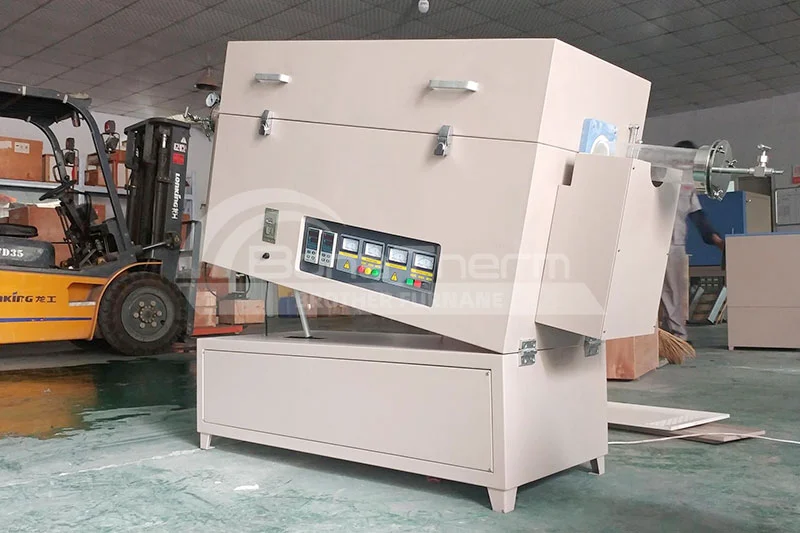

The upper-open furnace cover design allows real-time observation of the heated material, while an adjustable tilt angle (0–30°) and variable rotation speed (0–10 RPM, reversible) make loading and unloading straightforward.

Product Highlights

• Maximum temperature 1200°C

• 50-segment programmable PID automatic control

• Temperature control accuracy ±1°C

• Heating rate 0–20°C/min

• Tube rotation speed 0–10 RPM, continuously variable and reversible

• Three quartz lifting plates on inner tube wall for thorough material turnover

• Furnace tilt angle adjustable from 0° to 30° for convenient material handling

• Upper-open furnace cover for real-time observation

• Over-temperature alarm and leakage protection

Applications

Li-ion battery cathode material preparation, inorganic compound calcination, powder sintering, coating processes, and uniform thermal treatment of granular materials.

Standard Parts

Tube plug ×2, thermocouple ×1, quartz tube ×1, vacuum pump ×1, vacuum flange ×1 set, vacuum pressure gauge ×1

Technical Specifications（Customization available）
