Multi-Zone Tube Furnace
- Max Temp:1600 °C
- Atmosphere Control:Vacuum, N₂, Ar, H₂, mixed gas and other inert / reducing atmospheres
- Thermocouple:K-type (1200) / S-type (1400) / B-type (1600)
- Heating rate:≤ 20 °C / min
- Certification:CE / ISO 9001 certified
Get Quote
Send Email-
Customized Vacuum Solutions
-
High Thermal Efficiency
-
Ultra-Clean Vacuum Environment
-
Stable & Repeatable Results
-
Industry-Grade Safety Design
Product Description

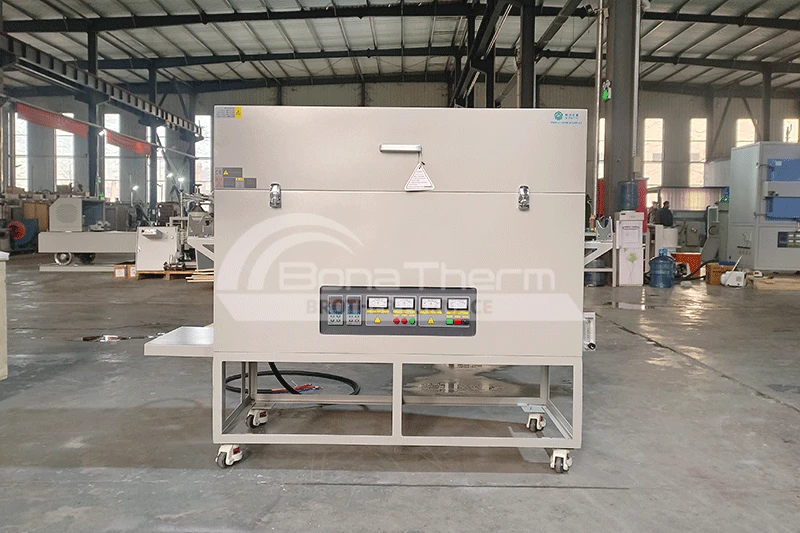

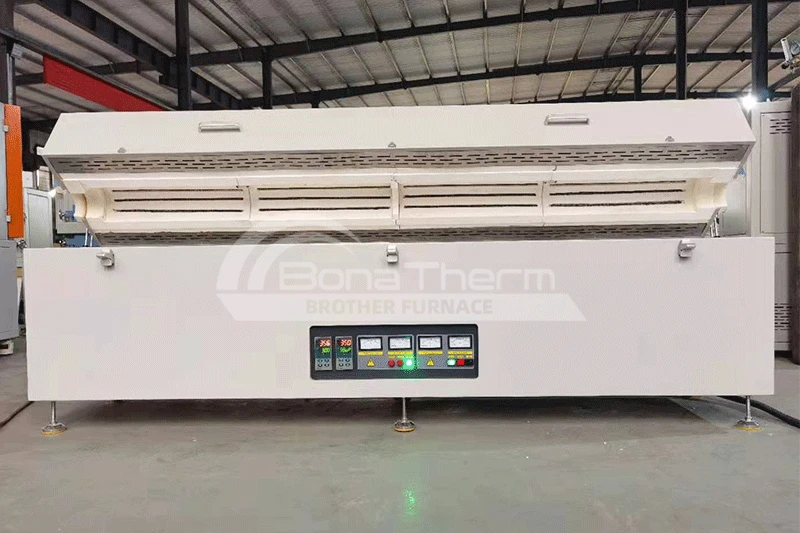

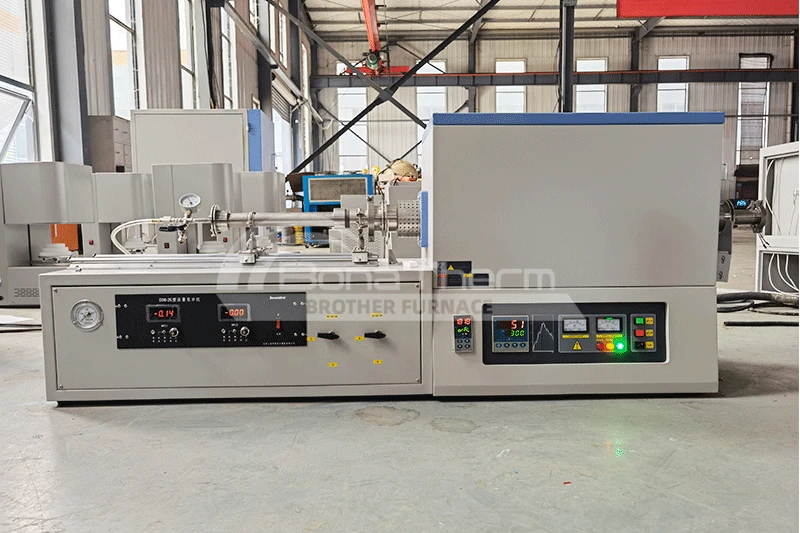

Brother Furnace multi-temperature zone tube furnace is available in dual-zone, three-zone, and five-zone configurations, with each zone independently controlled. Designed for use in vacuum or protective atmosphere environments, it supports a wide range of thermal processes, including material firing, sintering, coating, high-temperature pyrolysis, CVD deposition, and the synthesis of carbon nanotubes and silicon nanowires.
Product Highlights
Maximum temperature 1700°C
50-segment programmable PID automatic control
Temperature control accuracy ±1°C
Heating rate 0–20°C/min
Tube rotation speed 0–10 RPM, continuously variable and reversible
Three quartz lifting plates on the inner tube wall for thorough material turnover
Furnace tilt angle is adjustable from 0° to 30° for convenient material handling

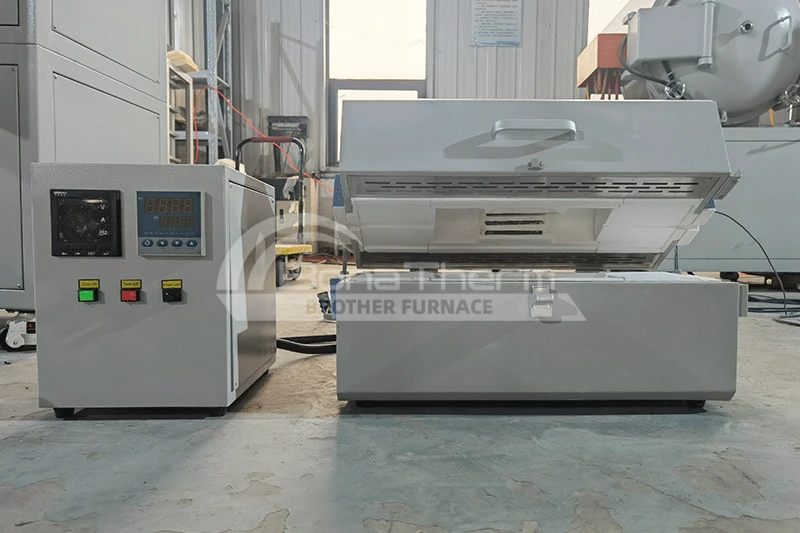

Upper-open furnace cover for real-time observation
Over-temperature alarm and leakage protection
Applications
Li-ion battery cathode material preparation, inorganic compound calcination, powder sintering, coating processes, and uniform thermal treatment of granular materials.
