Atmosphere/Vacuum Tube Furnace
- Max Temp:1600 °C
- Atmosphere Control:Vacuum, N₂, Ar, H₂, mixed gas and other inert / reducing atmospheres
- Thermocouple:K-type (1200) / S-type (1400) / B-type (1600)
- Heating rate:≤ 20 °C / min
- Certification:CE / ISO 9001 certified
Get Quote
Send Email-
Customized Vacuum Solutions
-
High Thermal Efficiency
-
Ultra-Clean Vacuum Environment
-
Stable & Repeatable Results
-
Industry-Grade Safety Design

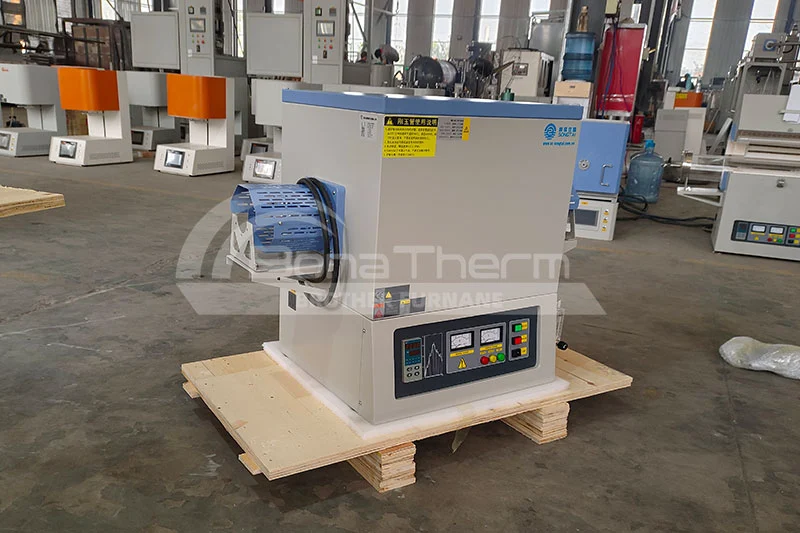

Product Description

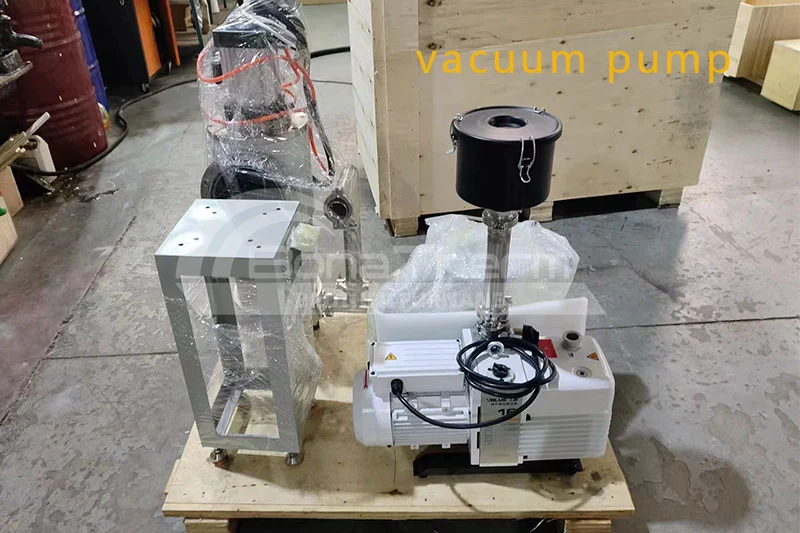

The Brother vacuum tube furnace is built for demanding high-vacuum and controlled-atmosphere applications where process purity is critical. Paired with a molecular pump unit, it achieves an ultimate vacuum of 7×10⁻⁴ Pa — suitable for research requiring extremely clean processing environments, including thin film deposition, high-purity material synthesis, and advanced sintering.
Featuring high-purity quartz or alumina furnace tubes, 304 stainless steel double sealing flanges, and intelligent 30-segment programmable control, this tube furnace delivers the precision and reliability required in both laboratory research and small-scale industrial production.
Product Highlights
Maximum temperature up to 1600°C
Intelligent 30-segment programmable automatic control
Temperature control accuracy ±1°C
Maximum vacuum –0.1 MPa (standard); 7×10⁻⁴ Pa with molecular pump
304 stainless steel double sealing flange
Double-layer air-cooled shell; surface temperature below 50°C
Heating rate ≤ 20°C/min
Over-temperature and leakage safety protection
Applications
High-vacuum sintering, vacuum annealing, atmosphere processing, thin film preparation, high-purity material synthesis, and university or industrial research.
