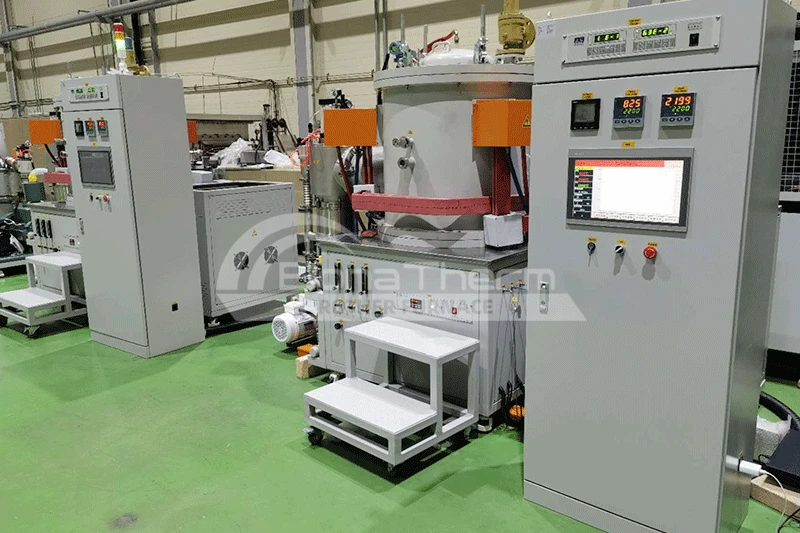

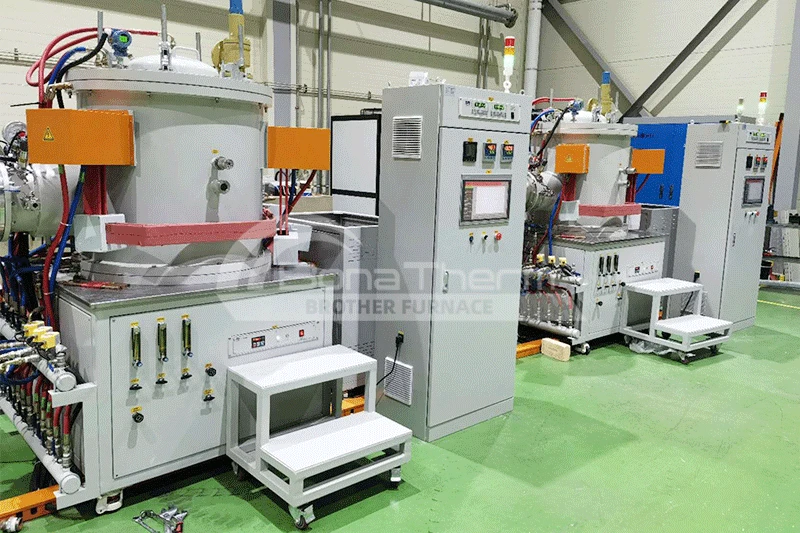

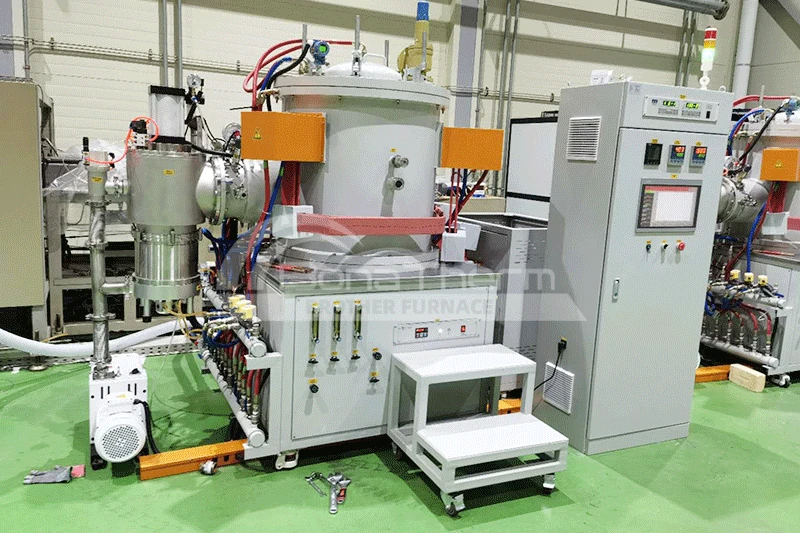

Vacuum Tungsten Furnace
- Max Temp:2300 °C
- Temp Measurement:W-Re thermocouple + infrared
- Heating Element:Tungsten mesh / foil
- Application:High-purity ceramics, sapphire, zirconia sintering
Get Quote
Send Email-
Customized Vacuum Solutions
-
High Thermal Efficiency
-
Ultra-Clean Vacuum Environment
-
Stable & Repeatable Results
-
Industry-Grade Safety Design
Product Description
Vacuum tungsten wire furnace using tungsten mesh heating, ultra-high temperature, and clean, pollution-free, suitable for high purity ceramic sintering, transparent ceramics, sapphire glass, zirconia, and other sintering under high vacuum, degassing, and aging treatment. It is also suitable for pilot-scale production and use in universities and scientific research institutes.
Product Highlights
Special designed tungsten net, tungsten foil as heating element, max. temperature can be 2400℃
The vacuum system adopts a direct-connected vacuum pump and turbo pump, ultimate vacuum can be 6x10-4Pa.
HMI adopts an HD touch screen with a built-in operating system developed by our company.
PLC automatic control system.
Can inlet N2, Ar, H2, N2, and H2 mixed gas, etc.
Optional Parts
Water cooling machine
Tungsten Crucible
Technical Specifications（Customization available）
Model | Heating Zone(Dia*H)mm | Temp(℃) | Temp Uniformity(℃) | Power(kW) | Ultimate Vacuum(Pa) |
BR-WSL-1020 | Φ100*200 | 2300 | ±5 | 60 | 6x10-4 |
BR-WSL-2040 | Φ200*400 | 2300 | ±5 | 160 | 6x10-4 |
BR-WSL-3050 | Φ300*500 | 2300 | ±5 | 250 | 6x10-4 |
BR-WSL-4060 | Φ400*600 | 2300 | ±5 | 340 | 6x10-4 |
