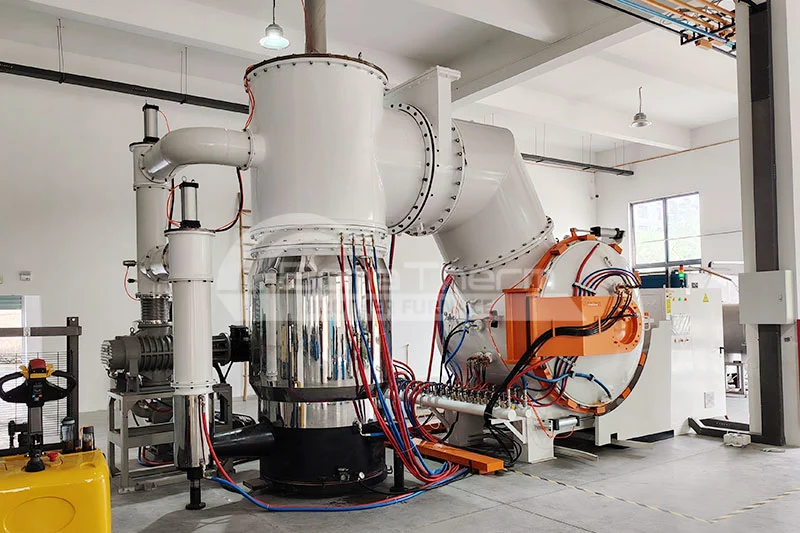

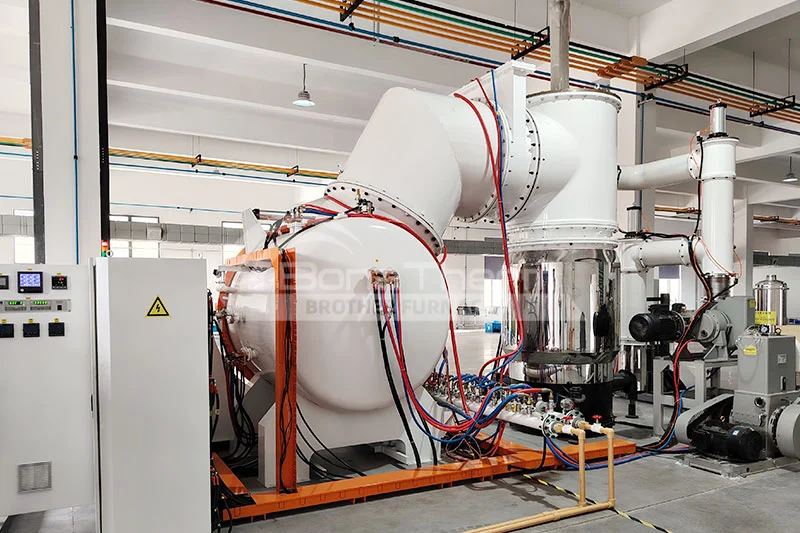

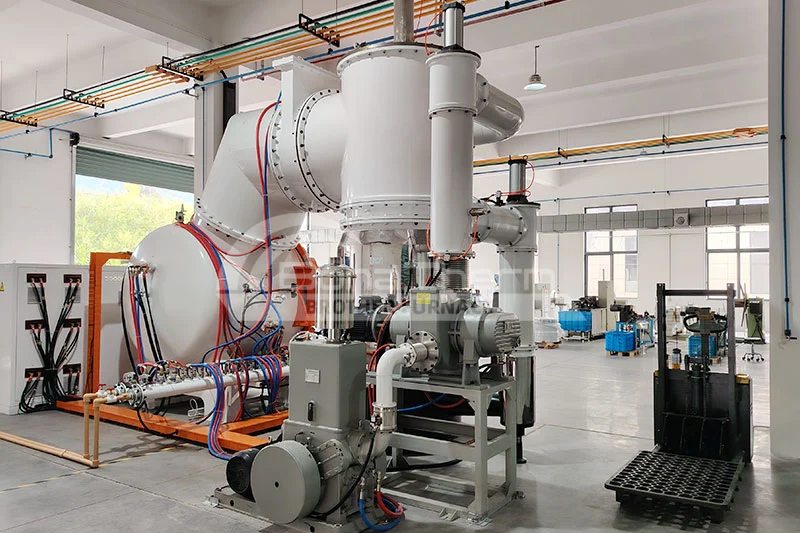

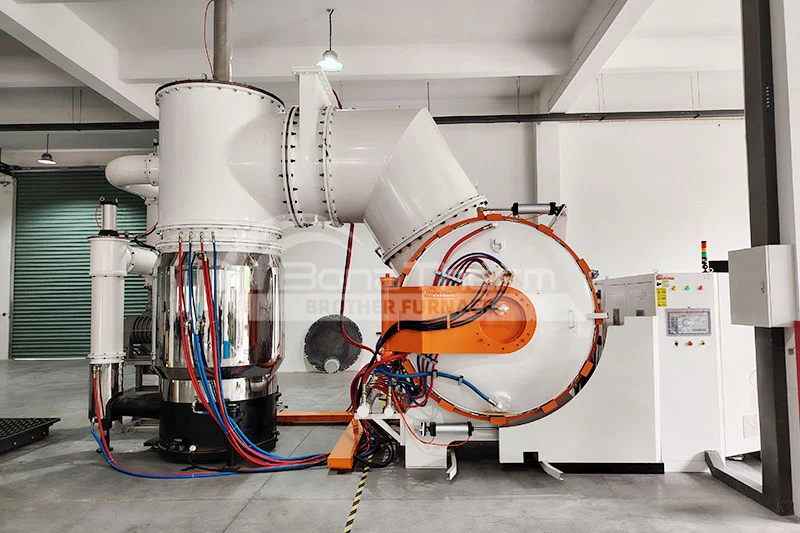

Large High-Vacuum Brazing Furnace
- Temperature Uniformity:±5℃
- Ultimate Vacuum:7×10⁻³ Pa（mechanical + diffusion pump）
- Application:Carbide tools, Ti alloy, Stainless steel, Al alloy, Ceramic-to-metal
- Control System:HD Touch Screen HMI + PLC Auto Control
Get Quote
Send Email-
Customized Vacuum Solutions
-
High Thermal Efficiency
-
Ultra-Clean Vacuum Environment
-
Stable & Repeatable Results
-
Industry-Grade Safety Design
Product Description
The Large High-Vacuum Brazing Furnace is designed for precision high-temperature brazing applications under ultra-high vacuum conditions. Featuring a robust stainless steel chamber and high-efficiency heating elements, it ensures excellent temperature uniformity and precise control, making it ideal for aerospace, electronics, automotive, and other high-tech industries.
 | |  |
Technical Specifications（Customization available）
Name / Parameter | Specification |
|---|---|
Control Method | 15-inch Touch Screen |
Effective Heating Zone Size (W×H×D) | 800 × 800 × 1200 mm |
Long-Term Working Temperature | ≤ 700°C |
Temperature Control Zones | 6 Zones |
Heating Rate | 0–20°C/min (Adjustable) |
Thermocouple Type | K Type |
Temperature Control Accuracy | ±1℃ |
Temperature Uniformity | ±5℃ |
Heating Elements & Furnace Chamber | Nichrome Alloy Heating Belt + High-Purity Stainless Steel |
Ultimate Vacuum | 7×10⁻⁴ Pa (Cold, Empty Furnace, After Baking) |
Working Vacuum | 8×10⁻³ Pa (After Baking) |
Vacuum Structure | Vacuum Chamber + Gate Valve Pump + Roots Pump + Diffusion Pump + Digital Vacuum Gauge + Stainless Steel Bellows + Pneumatic Baffle Valve |
Applications
Aerospace components brazing
High-precision electronic parts
Automotive and engine components
Advanced materials processing in research and manufacturing
