Introduction

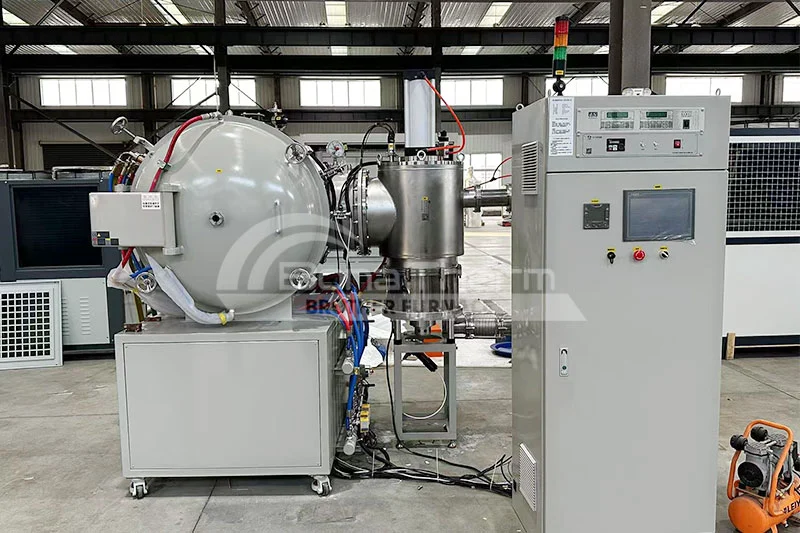

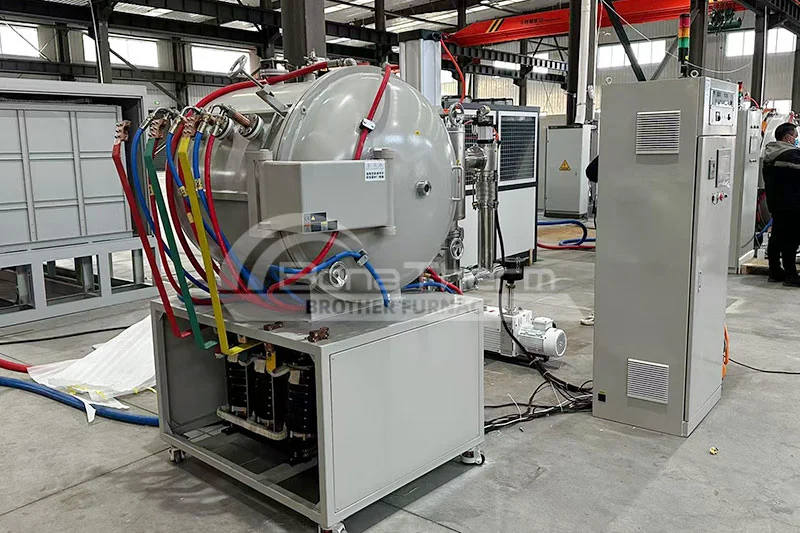

The Brother Furnace vacuum annealing furnace is composed of a sealed furnace body, heating chamber, vacuum system, water-cooling unit, electrical control system, and power supply system. The heating chamber can be configured with either graphite or metallic materials, depending on specific process requirements. The electrical control system is equipped with a PLC and a programmable temperature controller, allowing for fully automatic, semi-automatic, and manual operation modes, ensuring flexible and user-friendly operation. During the heating process, the furnace can operate under a vacuum environment or with an introduced protective atmosphere.
 |  |  |
Applications
- Vacuum annealing of stainless steel, alloy steel, titanium alloy, and other metals
- Stress relief heat treatment after welding or cold working
- Bright annealing of precision components (e.g., electronic packaging parts, medical components)
- Post-processing of 3D printed metal parts and high-temperature alloys
Common Furnace Chamber Types for Vacuum Annealing Furnaces
| Furnace Chamber Type | Maximum Temperature | Core Advantages | Suitable Sintering Materials |
|---|---|---|---|
| Molybdenum Foil Chamber | 1800°C | High strength at elevated temperatures, no contamination | High-temperature alloys (Nickel-based/Cobalt-based), Silicon Carbide (SiC) Ceramics, Silicon Nitride (Si₃N₄) Ceramics, High-purity metals (Tantalum, Niobium) |
| Ceramic Fiber Chamber | 1600°C | Fast heating/cooling, energy-efficient | Alumina (Al₂O₃) Ceramics, Zirconia (ZrO₂) Ceramics, Magnetic Materials (Ferrites), Small-to-medium-sized metal parts (Stainless Steel, Titanium Alloys) |
| Tungsten Wire Mesh Chamber | 2300°C | Extreme high-temperature resistance, corrosion resistance | Refractory metals (Tungsten, Molybdenum), Tantalum Carbide (TaC), Boron Nitride (BN), Ultra-high-temperature Ceramics (Zirconium Diboride-Silicon Carbide, ZrB₂-SiC) |
| Graphite Chamber | 2200°C | Ultra-high temperature, cost-effective, thermal shock resistant | Tungsten Carbide (WC), Titanium Carbide (TiC), Graphene Composites, Carbon-Carbon (C/C) Composites |
| Heat-Resistant Steel Chamber | 1200°C | Corrosion-resistant, easy to process, low cost | Copper-based alloys, Aluminum alloys, Low-melting-point metal powders (Tin, Lead), Magnetic alloys (NdFeB) |
Technical Parameters
Stainless Steel Chamber
Model | Chamber Size (W*H*D)mm | Temp(℃) | Power（kW） | Voltage（V） |
|---|---|---|---|---|
BR-QHS-223 | 200*200*300 | 750 | 12 | 380 |
BR-QHS-334 | 300*300*400 | 750 | 21 | 380 |
BR-QHS-446 | 400*400*600 | 750 | 34 | 380 |
BR-QHS-557 | 500*500*700 | 750 | 46 | 380 |
BR-QHS-669 | 600*600*900 | 750 | 64 | 380 |
Molybdenum Foil Chamber
Model | Chamber Size (W*H*D)mm | Temp(℃) | Power（kW） | Voltage（V） |
|---|---|---|---|---|
BR-QHM-223 | 200*200*300 | 1350 | 34 | 380 |
BR-QHM-334 | 300*300*400 | 1350 | 60 | 380 |
BR-QHM-446 | 400*400*600 | 1350 | 98 | 380 |
BR-QHM-557 | 500*500*700 | 1350 | 132 | 380 |
BR-QHM-669 | 600*600*900 | 1350 | 180 | 380 |
Graphite Chamber
Model | Heating Zone(W*H*D)mm | Work Temp(℃) | Power（kW） | Voltage（V） |
|---|---|---|---|---|
BR-18GVF-223 | 200*200*300 | 1800 | 60 | 380 |
BR-18GVF-334 | 300*300*400 | 1800 | 100 | 380 |
BR-18GVF-446 | 400*400*600 | 1800 | 160 | 380 |
BR-18GVF-557 | 500*500*700 | 1800 | 220 | 380 |
BR-18GVF-669 | 600*600*900 | 1800 | 300 | 380 |
Model | Heating Zone(W*H*D)mm | Work Temp(℃) | Power（kW） | Voltage（V） |
|---|---|---|---|---|
BR-22GVF-223 | 200*200*300 | 2200 | 85 | 380 |
BR-22GVF-334 | 300*300*400 | 2200 | 150 | 380 |
BR-22GVF-446 | 400*400*600 | 2200 | 235 | 380 |
BR-22GVF-557 | 500*500*700 | 2200 | 315 | 380 |
BR-22GVF-669 | 600*600*900 | 2200 | 425 | 380 |
Advantages of the Brother Furnace Vacuum Annealing Furnace
High-Vacuum Environment
Ensures oxidation-free and decarburization-free annealing, delivering clean, bright surfaces and improved workpiece quality.
Precise Temperature Control
Equipped with advanced temperature control modules and thermocouple feedback systems for high accuracy and stable heat treatment performance.
Uniform Temperature Field Design
Utilizes high-quality insulation materials and optimized heating element layout to achieve temperature uniformity within ±5°C across the chamber.
Multiple Configuration Options
Offers various heating zone solutions, including graphite and high-temperature molybdenum heaters, to accommodate different metals and process requirements.
Intelligent Control Interface
Touchscreen + PLC control system supports temperature profiling, data logging, and remote diagnostics for enhanced user experience.
Wide Range of Applications
Ideal for oxygen-free annealing of materials such as stainless steel, titanium alloys, magnetic alloys, and copper alloys.
