Atmosphere Furnace up to 1400°C
- Max Temp:RT ~ 1700 °C
- Atmosphere Control:Vacuum, N₂, Ar, N₂-H₂ and other inert / reducing atmospheres
- Control System:0.2-grade PID.50-segment programmable
- Certification:CE / ISO 9001 certified
Get Quote
Send Email-
Customized Vacuum Solutions
-
High Thermal Efficiency
-
Ultra-Clean Vacuum Environment
-
Stable & Repeatable Results
-
Industry-Grade Safety Design
Equipment Overview

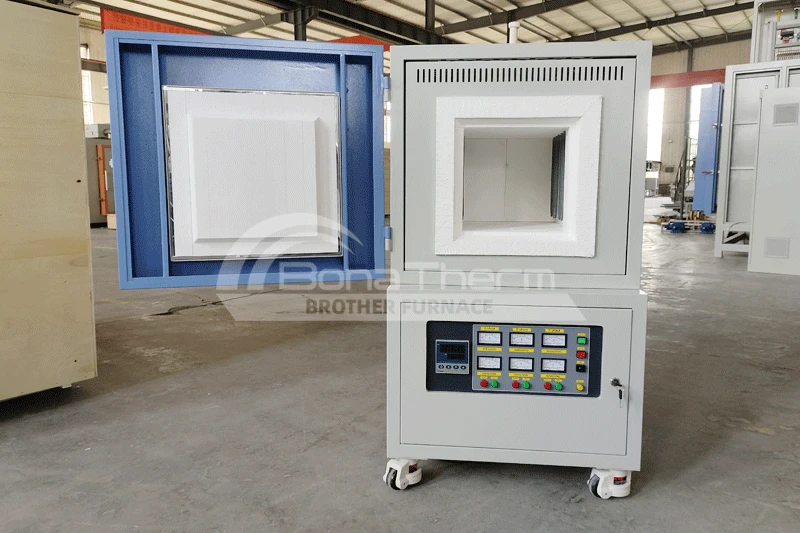

At the upper boundary of laboratory atmosphere furnace capability, the Brother 1700°C box-type atmosphere furnace is built for research and processes that demand both extreme temperature and precise atmosphere control in the same instrument. Molybdenum disilicide (MoSi₂) heating elements sustain temperatures up to 1700°C with long-term stability, opening access to sintering conditions required for high-performance technical ceramics, refractory materials, and specialized inorganic compounds that cannot be processed at lower temperatures.
Despite its extreme temperature capability, the furnace retains the full sealed-chamber design, vacuum pre-purge workflow, and programmable control that characterize the entire Brother atmosphere furnace series — ensuring that process repeatability and atmosphere quality are never compromised at high temperature.
Key Features
Working temperature range RT to 1700°C (recommended working temp 1600°C)
MoSi₂ heating elements for sustained ultra-high-temperature operation
Alumina polycrystalline fiber chamber for contamination-free, uniform heating
Fully enclosed double-layer steel plate; withstands 0.02 MPa pressure
Reinforced with 12mm solid square steel on all sides; maintains structural integrity at high thermal load
Maximum vacuum up to –0.08 MPa
0.2-level precision PID controller with 50-segment programming
Four hand-wheel locking door with silicone ring seal
Applications
Ultra-high-temperature ceramic sintering, refractory material processing, specialized inorganic compound synthesis, high-temperature material characterization, and advanced research requiring sustained temperatures above 1500°C.
Standard Parts
Furnace door, firebrick, high-temperature gloves, tongs, manual, two heating elements, rotary vane vacuum pump
Optional Upgrades
Direct-connected vacuum pump; touch screen / PC connection software; crucible and multi-layer kiln furniture; gas atmosphere system (float or mass flowmeter, 2–3 channel)
