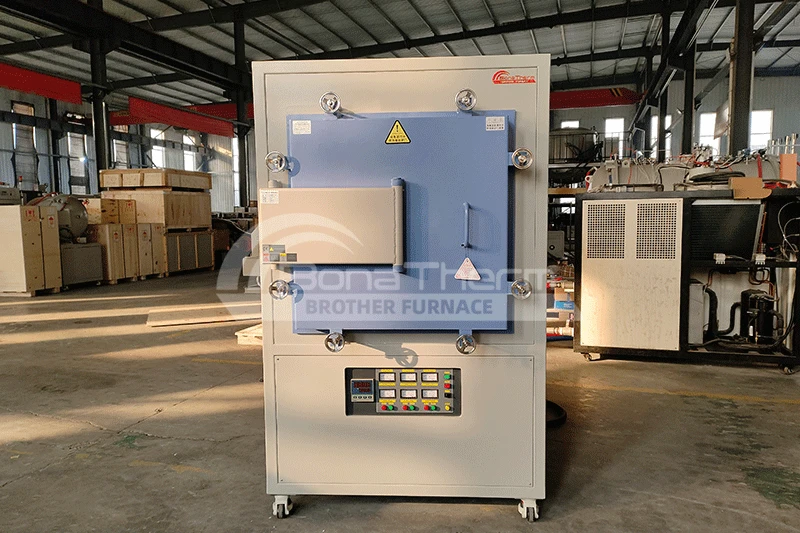

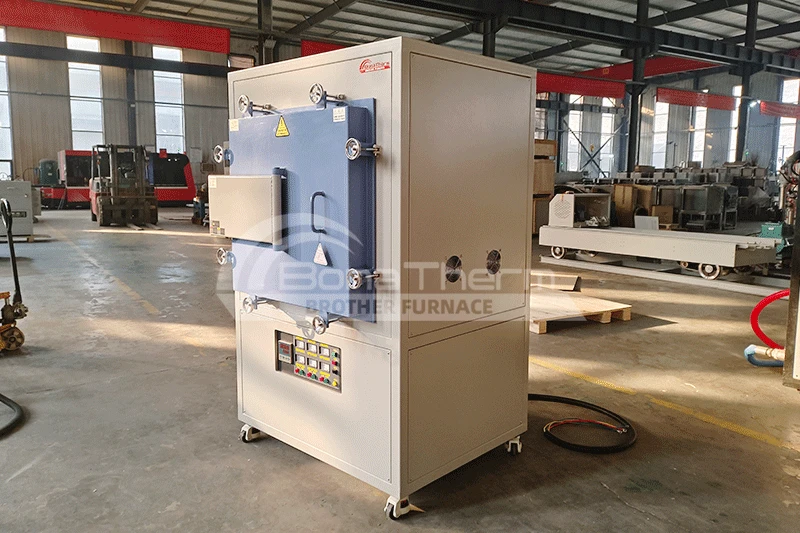

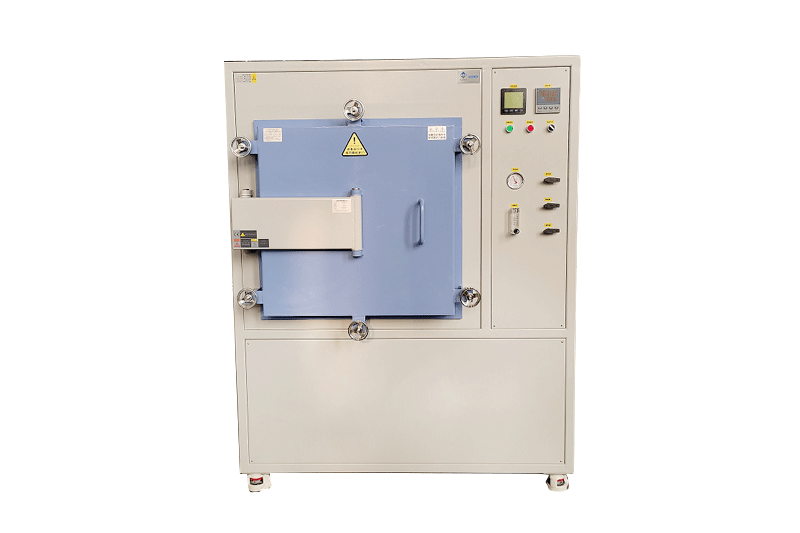

Atmosphere Furnace up to 1200°C

Product Description

Designed for material laboratories and small-batch production environments where atmosphere purity and process consistency matter, the Brother 1200°C box-type atmosphere furnace offers a compact and reliable platform for heat treatment under controlled gas environments. The furnace is first evacuated to minimize residual oxygen, then backfilled with nitrogen, argon, or nitrogen-hydrogen mixtures to create the precise atmosphere required for each process.

Its fully enclosed, double-layer steel construction and alumina polycrystalline fiber chamber deliver both structural integrity and excellent thermal uniformity — making it a practical choice for researchers working with semiconductors, silicon nitride, and other oxygen-sensitive materials.

Product Highlights

• Working temperature range RT to 1200°C (recommended working temp 1100°C)

• Alumina polycrystalline fiber furnace chamber for a balanced temperature field and a contamination-free environment

• Fully enclosed double-layer thickened steel plate structure; withstands up to 0.02 MPa pressure

• Top, left, right, and back reinforced with 12mm solid square steel — no structural deformation

• Maximum vacuum up to –0.08 MPa

• Industrial precision 0.2-level intelligent PID controller with 50-segment programming

• Four-hand wheel locking furnace door with silicone ring seal for reliable atmosphere isolation

Applications

Semiconductor sintering, silicon nitride processing, oxide material heat treatment, atmosphere reduction, and small-batch laboratory production.

Standard Parts

Furnace door firebrick, high-temperature gloves, tongs, manual, rotary vane vacuum pump

Optional Upgrades

Direct-connected vacuum pump; touch screen / PC connection software; crucible and multi-layer kiln furniture; SiC or MoSi₂ heating elements; gas atmosphere system (float or mass flowmeter, 2–3 channel)

Technical Specifications(Customization available)
