Graphite Hot Zone Vacuum Furnace for High-Temperature Sintering in Türkiye

Project Overview

Industry: Advanced Ceramics and Powder Materials

Destination: Türkiye

Equipment: Graphite Hot Zone Vacuum Furnace

Application: High-Temperature Sintering and Thermal Processing

Supplier: Brother Furnace

A manufacturer specializing in advanced ceramic components and powder-based materials in Türkiye was looking for a reliable vacuum furnace to support its high-temperature production processes. The company needed a furnace with a suitable heating system, a stable thermal environment, and reliable vacuum performance to improve process consistency and reduce the risk of oxidation during heat treatment.

After reviewing the application requirements, Brother Furnace provided a customized graphite hot zone vacuum furnace solution designed around the customer's production needs.

Customer Background and Requirements

The customer was a medium-sized industrial manufacturer developing and processing high-performance materials for demanding applications. As its production requirements evolved, the company wanted to improve control over high-temperature processing and achieve more consistent results between batches.

The main requirements included:

High-temperature processing: A furnace suitable for demanding thermal treatment and sintering applications.

Controlled processing atmosphere: A vacuum environment to help limit oxidation and contamination during appropriate thermal processes.

Graphite hot zone: A graphite-based heating chamber designed for high-temperature operation and compatible process conditions.

Reliable furnace structure: A robust vacuum chamber, dependable sealing, and an integrated system of piping and connections.

Application flexibility: A solution that could be configured according to the customer's materials, process temperatures, vacuum requirements, and production workflow.

The customer was particularly interested in a vacuum furnace solution that could support repeatable processing conditions rather than simply provide high operating temperatures.

Brother Furnace Solution

Based on the application discussion, Brother Furnace recommended a graphite hot zone vacuum furnace configured for high-temperature thermal processing.

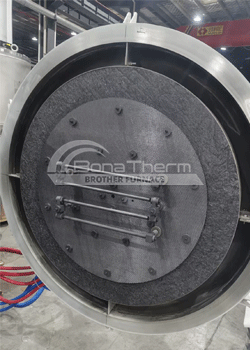

The equipment shown in this project features a large cylindrical vacuum chamber with a front-opening door. Its internal chamber is lined with dark graphite-based hot-zone insulation, with heating elements and internal fixtures arranged within the processing area. The external assembly includes chamber-closing hardware, vacuum-system connections, and red and blue utility lines connected to the furnace system.

Key Equipment Features

1. Graphite Hot Zone

The graphite hot zone is designed for high-temperature applications where a compatible vacuum or controlled-atmosphere environment is required. Its suitability depends on the workpiece materials, process gases, operating temperature, and required vacuum conditions.

2. Vacuum Chamber Design

The cylindrical chamber and front-opening configuration provide access to the working zone for loading and unloading materials. The vacuum chamber is designed to support controlled processing conditions when operated with the appropriate pumping and sealing systems.

3. Integrated System Connections

The visible piping, fittings, and external connections form part of the furnace's integrated equipment layout. The final system configuration can be tailored to the required pumping arrangement, cooling system, gas supply, and process-control requirements.

4. Application-Oriented Customization

Brother Furnace evaluates each project according to the customer's material characteristics, batch size, temperature profile, vacuum level, and production cycle. Technical specifications are confirmed during engineering rather than assumed from the furnace's external appearance.

Potential Application: Vacuum Sintering of Advanced Materials

For this application scenario, the furnace is intended to support the vacuum sintering of compatible powder-based materials and high-performance components.

A vacuum sintering furnace can help establish a controlled environment for heating and densifying suitable materials while reducing exposure to oxygen and other contaminants. Depending on the material system, the process may improve densification, microstructural consistency, and the quality of the finished components.

A graphite hot zone is particularly relevant when the required processing temperature and atmosphere are compatible with graphite. However, graphite can react with certain materials and gases, so material compatibility and process conditions must be evaluated before selecting the final furnace configuration.

For customers seeking a high-temperature vacuum furnace for powder metallurgy, advanced ceramics, or other compatible materials, Brother Furnace can develop a solution based on the actual production process.

Customer Feedback

The following is illustrative customer feedback written for this sample case, not a verified statement from an actual customer.

"We needed a vacuum furnace that could meet our high-temperature processing requirements while providing a controlled environment for our materials. Brother Furnace took the time to understand our application before proposing a solution.

We appreciated the attention given to the graphite hot zone, the chamber configuration, and the supporting system connections. The project discussion focused on our actual process requirements instead of offering a one-size-fits-all furnace.

For us, this application-oriented approach was an important part of selecting the right equipment for our production plans."

Conclusion: A Customized Vacuum Furnace Solution from Brother Furnace

Selecting a suitable vacuum furnace involves more than choosing a maximum temperature. The hot-zone material, vacuum performance, heating uniformity, atmosphere, workpiece characteristics, and production cycle all influence the final equipment configuration.

With its experience in industrial and laboratory furnace solutions, Brother Furnace works with customers to evaluate their processing requirements and develop suitable high-temperature vacuum furnace systems.

Whether you are looking for a vacuum sintering furnace for powder metallurgy and advanced materials or a specialized vacuum furnace for another thermal process, our team can help assess your application and recommend an appropriate configuration.

Have a vacuum furnace project in mind? Contact Brother Furnace to discuss your materials, operating temperature, vacuum requirements, and production goals. We welcome inquiries from customers worldwide and are ready to provide professional furnace solutions tailored to your application.
